Professional
Rack Design
Made Simple
The complete multi-rack planning tool for AV integrators and IT professionals. Design scalable layouts from 5U to 50U with real-time power and cooling calculations.
Free plan includes 1 project. Upgrade to Pro for unlimited projects, exports & cloud sync.
Scale from single racks to complete data centers
Whether you're designing a home theater closet or a multi-rack server room, RackLab scales with your projects.
Flexible Multi-Rack Projects
Design projects with multiple racks in any size from 4U to 48U. Perfect for server rooms, AV closets, and data centers.
Real-Time Power Analysis
Automatic calculation of watts, amps, BTU, and cooling tonnage for precise infrastructure planning.
AI Equipment Search
Natural language search to find equipment from our curated database of AV and IT gear.
Professional Reports
Generate rack schedules, BOMs, and share documentation with your team instantly.
Network Documentation
Track hostnames, IP addresses, VLANs, and MAC addresses for complete infrastructure docs.
Cloud Sync & Backup
Your projects are automatically saved and synced across all your devices securely.

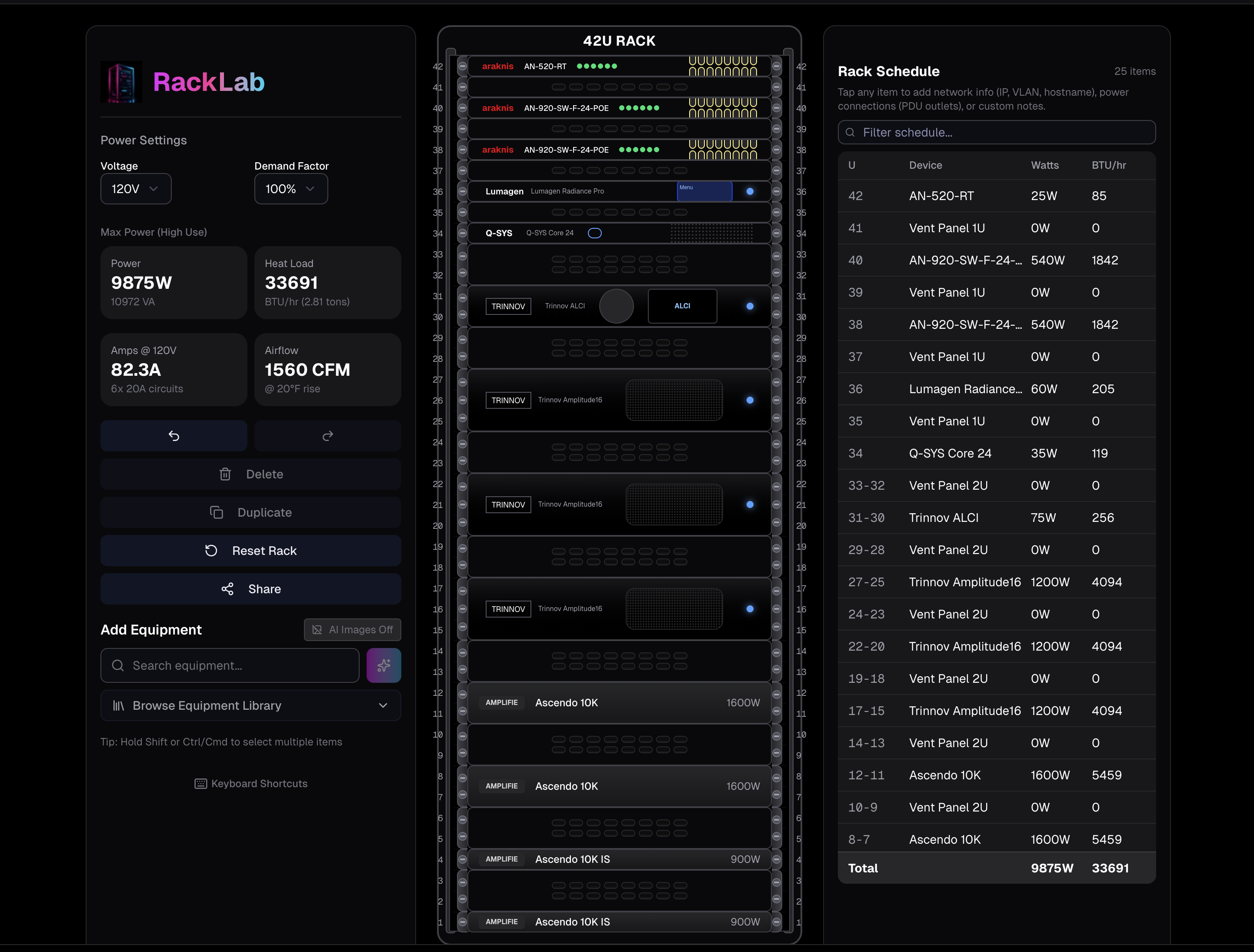

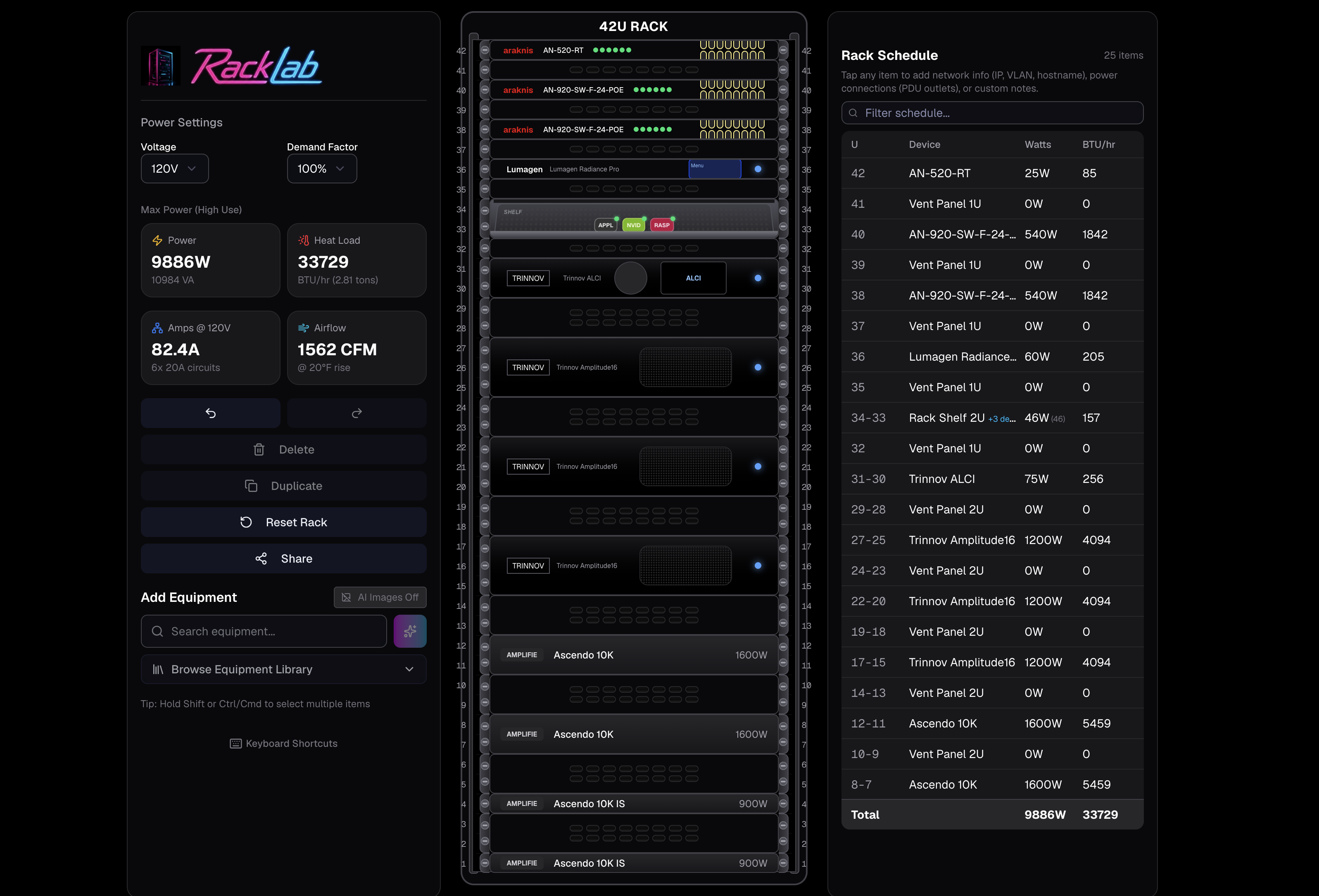

Real-Time Power and Cooling Calculations
Watch power, amperage, BTU heat load, and cooling requirements update live as you build your rack. Every change instantly recalculates so you can plan electrical circuits and HVAC with confidence.
- Total watts and VA with demand factor adjustment
- Amps at 120V or 240V for circuit planning
- BTU/hr heat load for HVAC sizing
- CFM airflow requirements at 20°F rise
Expansive library with AI-powered search
Find equipment instantly with natural language search powered by AI. Pre-loaded with gear from top brands, plus full support for custom equipment items with your own specs.
- AI-powered natural language equipment search
- Create fully custom equipment items
- Rack shelves for non-mountable gear with full power and BTU calculations
Available on all your devices
Use RackLab in any browser today. Native iOS and Android apps are coming soon.
Or sign in to the web app directly in your browser
